This product "Compression bolt" is for through nut (long type) only.
- When installing, be sure to install with the nut attached to the vehicle (retrofitting).
- ● For installation, please use the included 6HEX, L-type wrench.
- The tightening torque for this product "Compression bolt" is up to 4 N ・ m (0.4 kgf ・ m) .

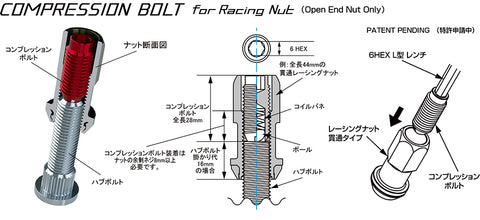

- When installing, check the total length of the nut and the thread allowance, and calculate the amount of projection of the “comp bolt”.
- Compression bolt is a product with built-in steel ball and spring in aluminum bolt
- The locking effect of the nut attached by the tension of the spring improves
