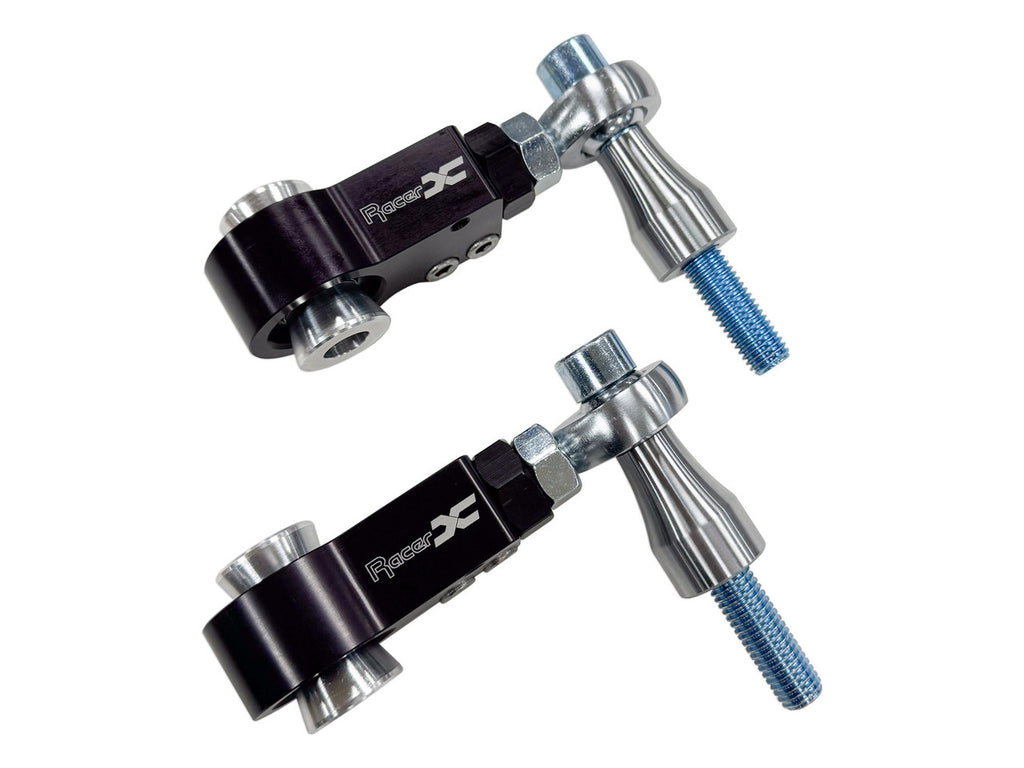

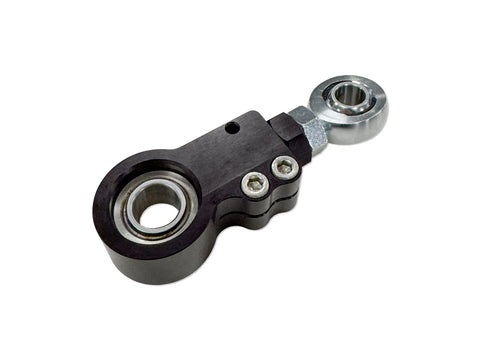

The Racer X Fabrication rear end links for the 2023+ Toyota GR Corolla are designed to increase handling, response, and feedback by eliminating the OEM rubber bushings. The Racer X rear end links feature a large spherical bearing and chromoly rod end with a double adjuster design that allows for easy adjustment. The end link body is CNC machined from 6061-T6 aluminum and features a pinch bolt design to lock the threaded adjuster in place. We tested the completed assembly on our in-house universal testing machine to an axial loading of over 8,000 lbs of force -- which is far beyond any sway bar force that can be induced. The completed assembly is anodized black with zinc plated hardware.
COMPATIBILITY
- 23+ Toyota GR Corolla
WHAT'S INCLUDED
- (2) Racer X end link assembly
- (2) Rod end bushing
- (2) Rod end small spacer
- (2) M12 grade 12.9 socket head cap screw
- (2) M12 flange nuts
- (4) Aluminum bushings
Photos used for marketing purposes only. Actual product may vary.
NOTE: System Motorsports is the industry-leading recognized authorized RacerX Fabrication dealer and distributor in the US. All RacerX products we procure, source, and sell are manufactured and imported from RacerX directly. Please do not purchase replica / imitation products - your safety is our concern!
For all product inquiries and questions - please contact us directly!
